Ryan from Celebrate Community Church in Sioux Falls, SD brings us this design that looks like circuitry.

They needed a stage solution that would launch a series (‘The Voice’, playing off the TV show), but would also be flexible enough to stand on it’s own for a few subsequent months/ Several concepts later, they landed on a hodge-podge of primarily lighting-based elements. Loosely modeled after components from the TV show, this allowed for a series changeout, only requiring color/lighting changes.

Mostly inspired by other CSDI designs, the element breakdown was:

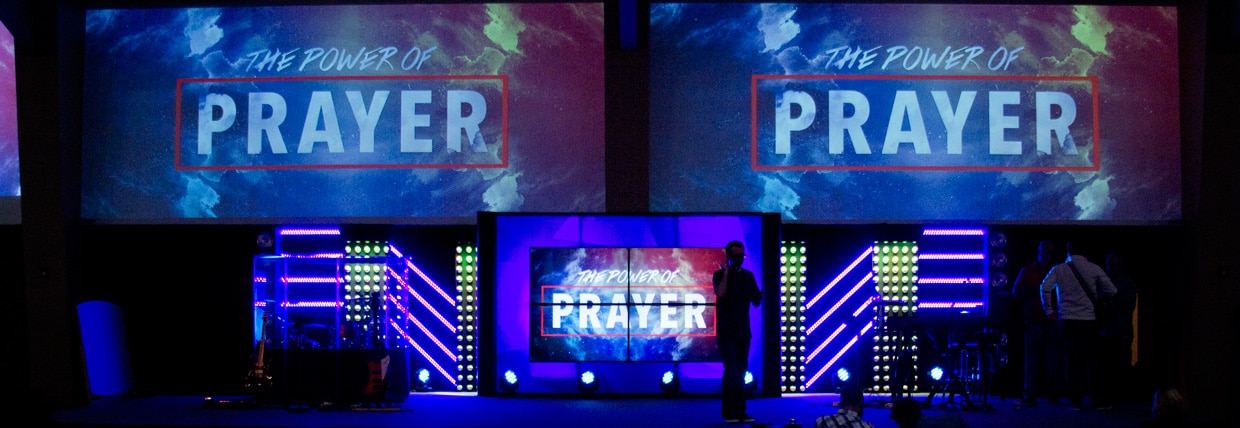

• Center wall: 1″x12″ framed ‘box’, faced with clear Coroplast with an abstract/angular design printed on it. Lit from the inside with five HotStiks. Four LED TVs mounted on the face, fed from a Mac Mini through a Gefen video wall processor. The TV’s were mounted to custom backplates, which were U-clamped to 1″ steel tubes on the inside of the wall. Backplate sits on the inside of the Coroplast face, bolted to the TV on the outside to give them a ‘floating’ appearance, with no visible mounts.

• Ball Walls: 3″ styrofoam half-balls mounted on black plywood, downlit with HotStiks.

• Flash Towers: Seven 10″ work lamps, encased in a black plywood cabinet, fed through the lighting console, used primarily as crowd blinders.

• LED Strips: Hand-wired by a volunteer, LED tape, attached to 1″ aluminum strips, painted black. These were built in set lengths, so they can be reused in the future. Strips can be daisy-chained together in different configurations, and are DMX controlled through a custom built processor, thanks to the wizard volunteer.

This set mainly utilized components from past sets, so budget is tough to pinpoint.
