Hyper Techno Dots

Planning a Perforated OSB and Light-Box Backdrop

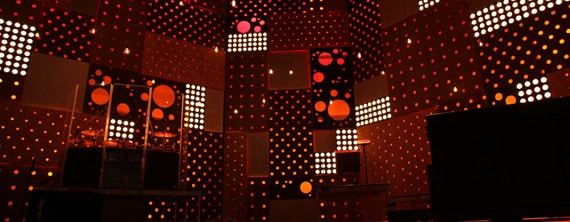

The strength of this design is the contrast between a rough wood surface and clean points of colored light. The holes create a repeating pattern, while the square light boxes interrupt that pattern with larger blocks of brightness. Because the wood remains visible, the backdrop can have texture even during a restrained speaking cue. For an adaptation, decide which layer should lead: the small illuminated circles, the larger boxes, or the stained wood. Giving each layer a distinct role keeps the whole wall from becoming visually busy.

Start with a scaled drawing that shows your usable stage width, musicians, screens, and normal speaker positions. The submitted installation used very large welded sections; those dimensions describe this particular room, not a minimum size for the idea. A smaller layout can still combine perforated panels and square accents. Draw the panel boundaries before laying out the circles, and check that joints do not create unintended gaps in the pattern. Keep access to electrical connections and lighting fixtures in the plan rather than treating the back of the set as leftover space.

Test the Hole Pattern and Diffusion Before Building

Make one sample panel with several hole sizes before cutting a complete set. Mark the layout on a template so volunteers can repeat it consistently, while preserving the variation that makes the pattern interesting. Clamp the work securely, use appropriate cutting tools and dust control, and smooth the cut edges. Apply your proposed stain to the sample as well: OSB texture and finish can look quite different under colored light than under work lights. Check the sample from the rear seats, where small circles may visually merge.

The original team backed the OSB with Coroplast. Test your actual sheet material with the fixtures you plan to use, since opacity, color, and distance from the source affect the result. Compare the sample with the light closer and farther away, looking for individual bright spots, unwanted shadows, and light escaping around panel edges. Build a representative light-box sample too. Keep materials within their permitted temperature conditions, preserve fixture ventilation, and follow the fixture manufacturer’s clearance requirements. A glowing surface should not depend on trapping heat inside a wooden box.

Organize Lighting and Assembly as Separate Jobs

The original light boxes were individually circuited, which allowed the team to create chases. Before planning a similar effect, map every box to a circuit or control channel and label both ends of its cable. Have a qualified electrician review the proposed loads, distribution, protection, and equipment compatibility. The incandescent lamps described in the submission are part of the original build, not a requirement for recreating the look. If considering LED alternatives, test diffusion, dimming, and camera appearance with the actual products before buying a complete package.

Program a simple still look before adding movement. Bring up the circular pattern, then introduce the square boxes, checking whether either layer distracts from faces or lyrics. Save separate speaking and music looks, and try a slow chase before faster movement. Review the result through the main camera as well as from the room. For the physical installation, have a qualified scenic or rigging professional review the support structure, connections, and venue requirements; photographs and the downloadable drawings do not establish a safe load rating for a different installation.

Pro Tips for a Glowing Dot Wall

1. Approve one complete sample: Evaluate the wood finish, hole spacing, backing, and light together before repeating the assembly.
2. Label every module: Match panel labels to a layout drawing and circuit map so setup and troubleshooting do not depend on memory.
3. Budget beyond the face panels: Include support, hardware, diffusion, wiring, finishing supplies, and storage when comparing design options.
4. Protect the visual hierarchy: Keep a calmer lighting cue ready for speaking moments so the bright pattern supports rather than competes with people.
