Throwback: Framed Flat Panels

Jeremy Framstad at Grace Community Church in Fremont, Ohio brings us these cool corrugated metal-framed flat panel TVs. (Originally posted June 2013)

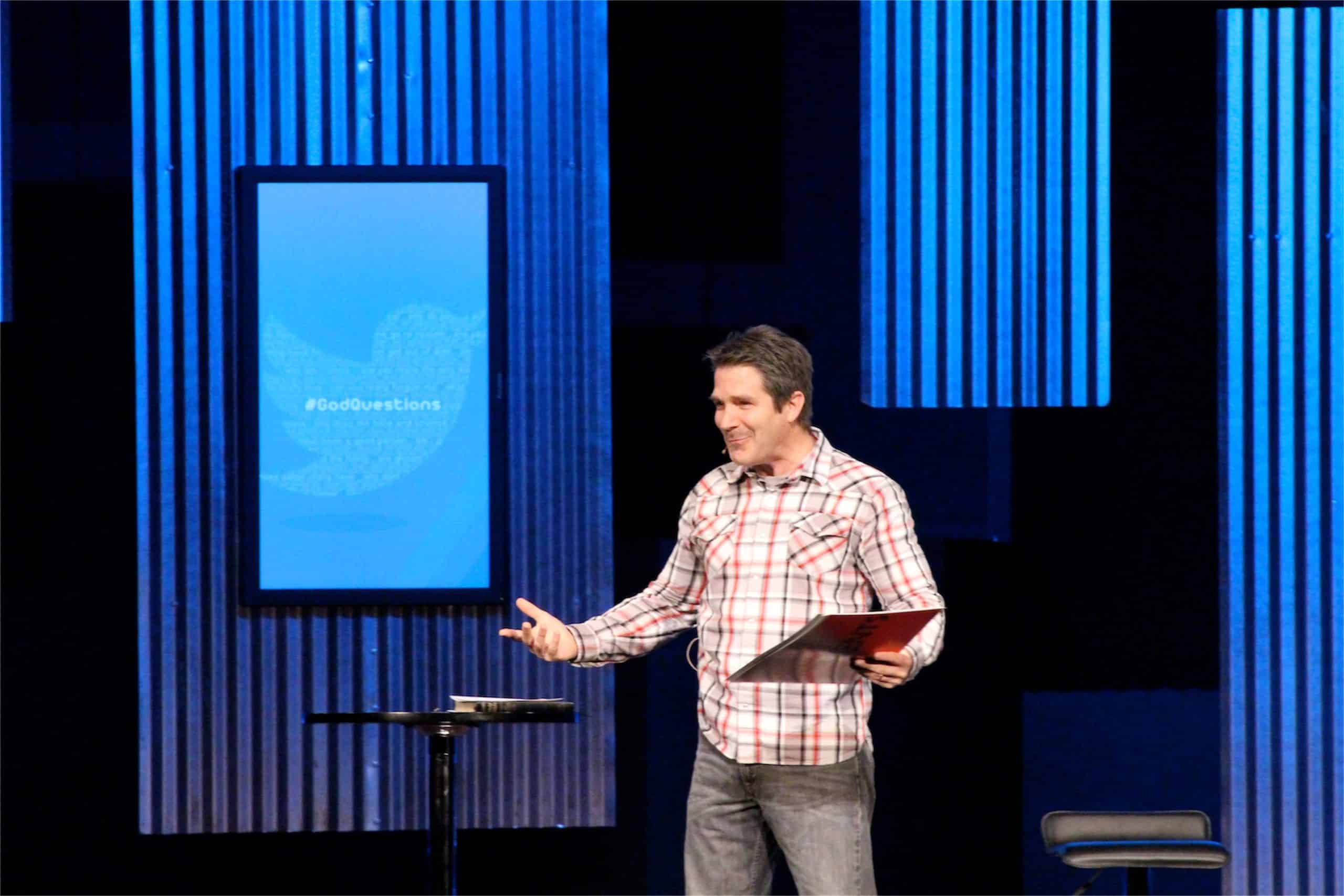

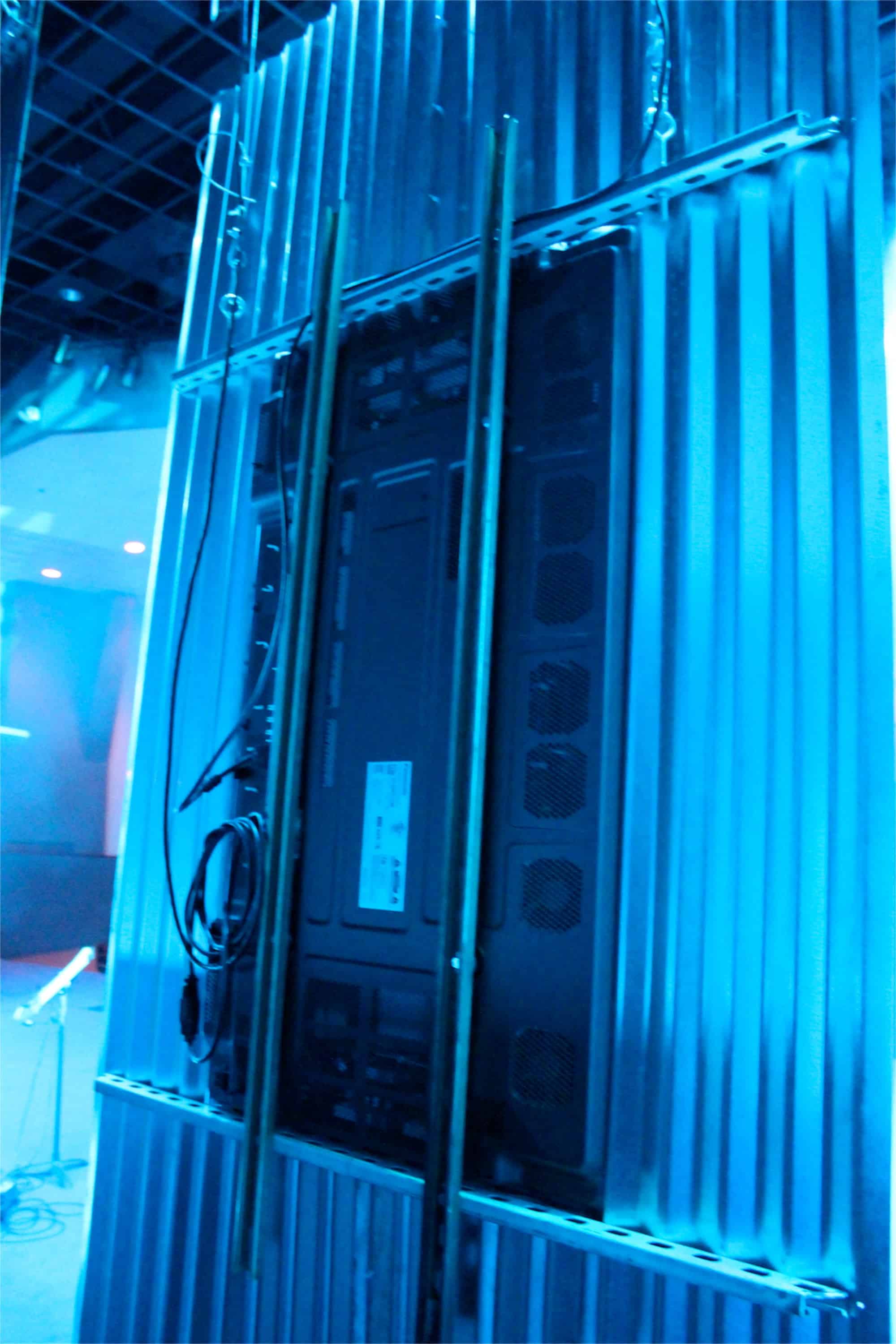

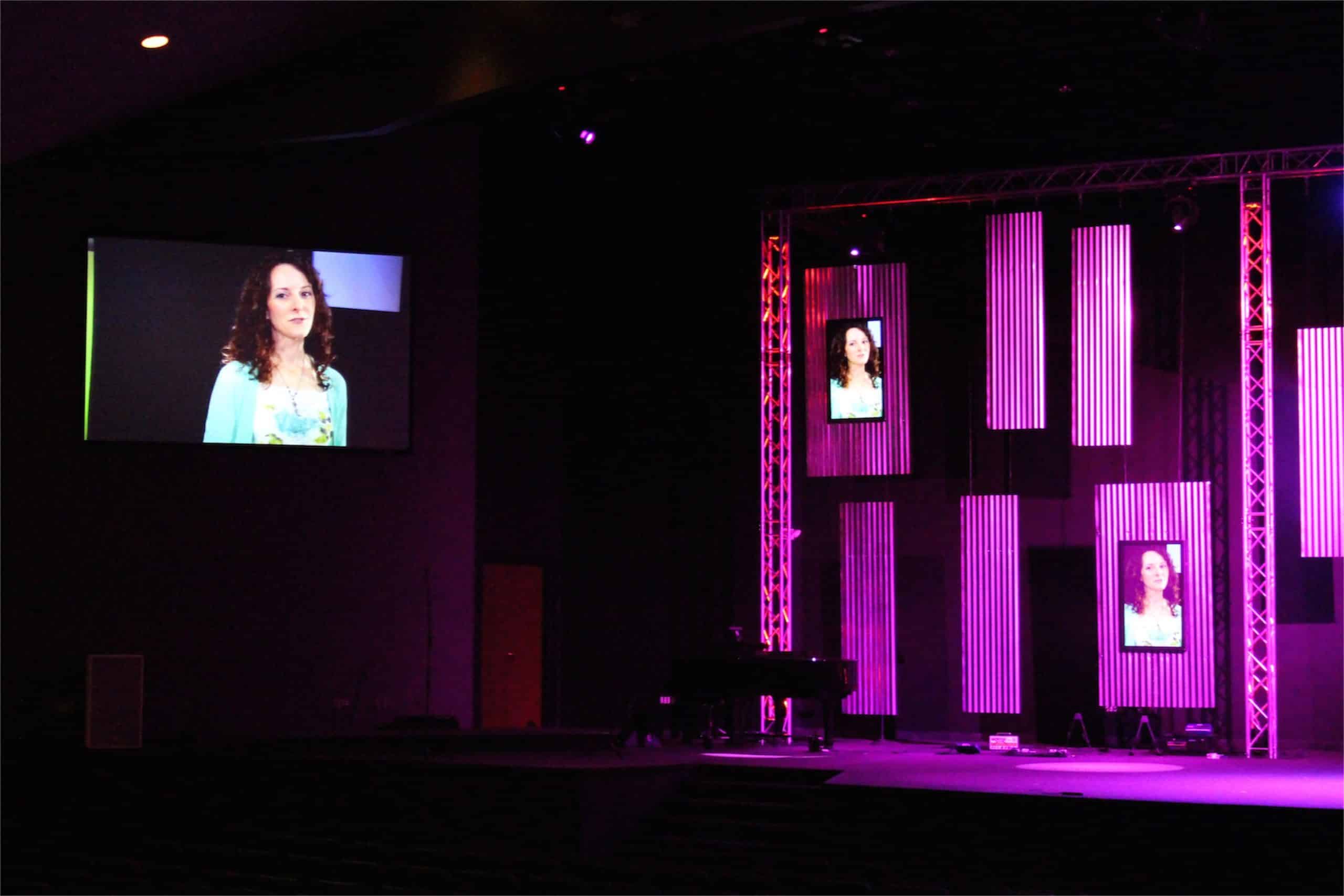

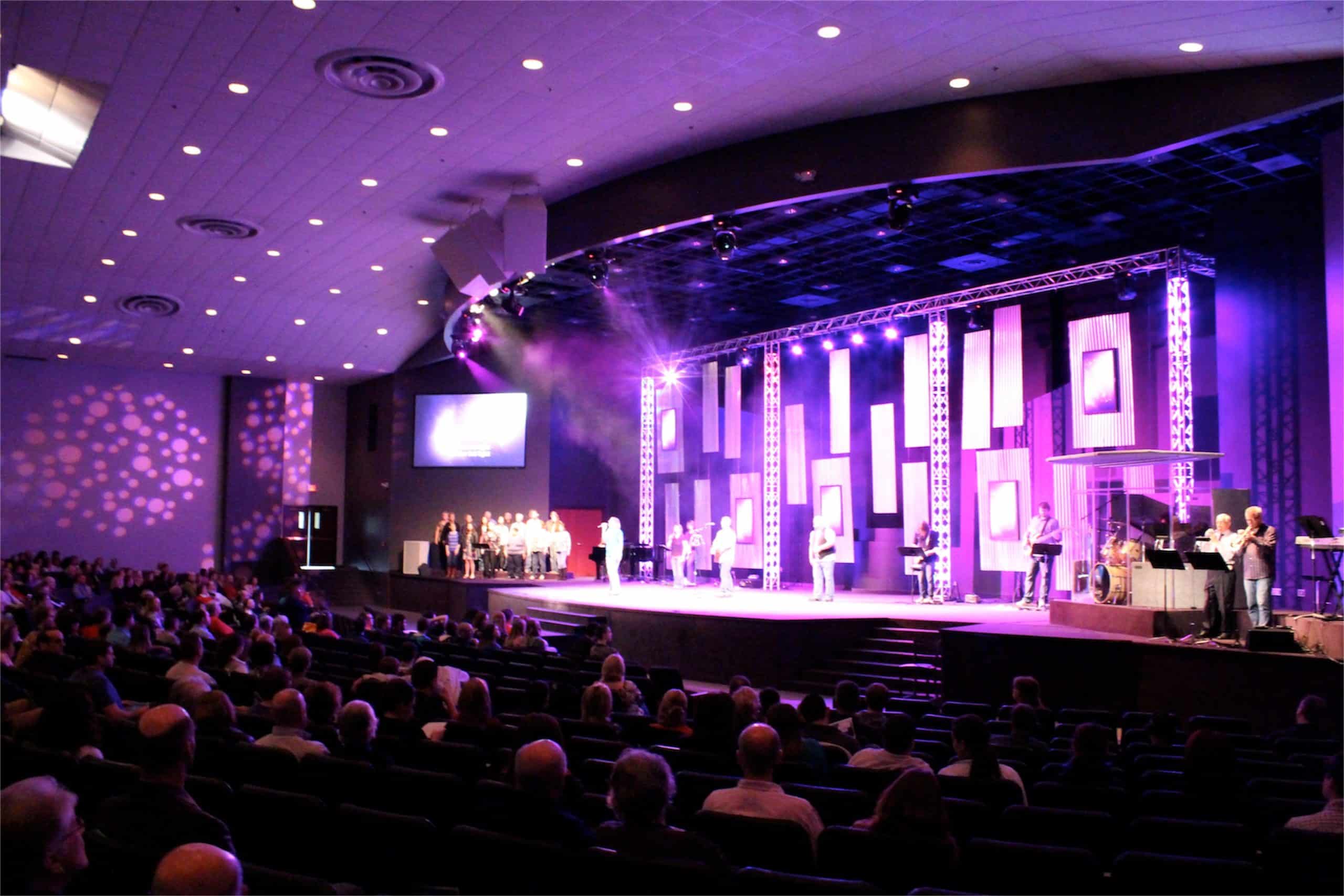

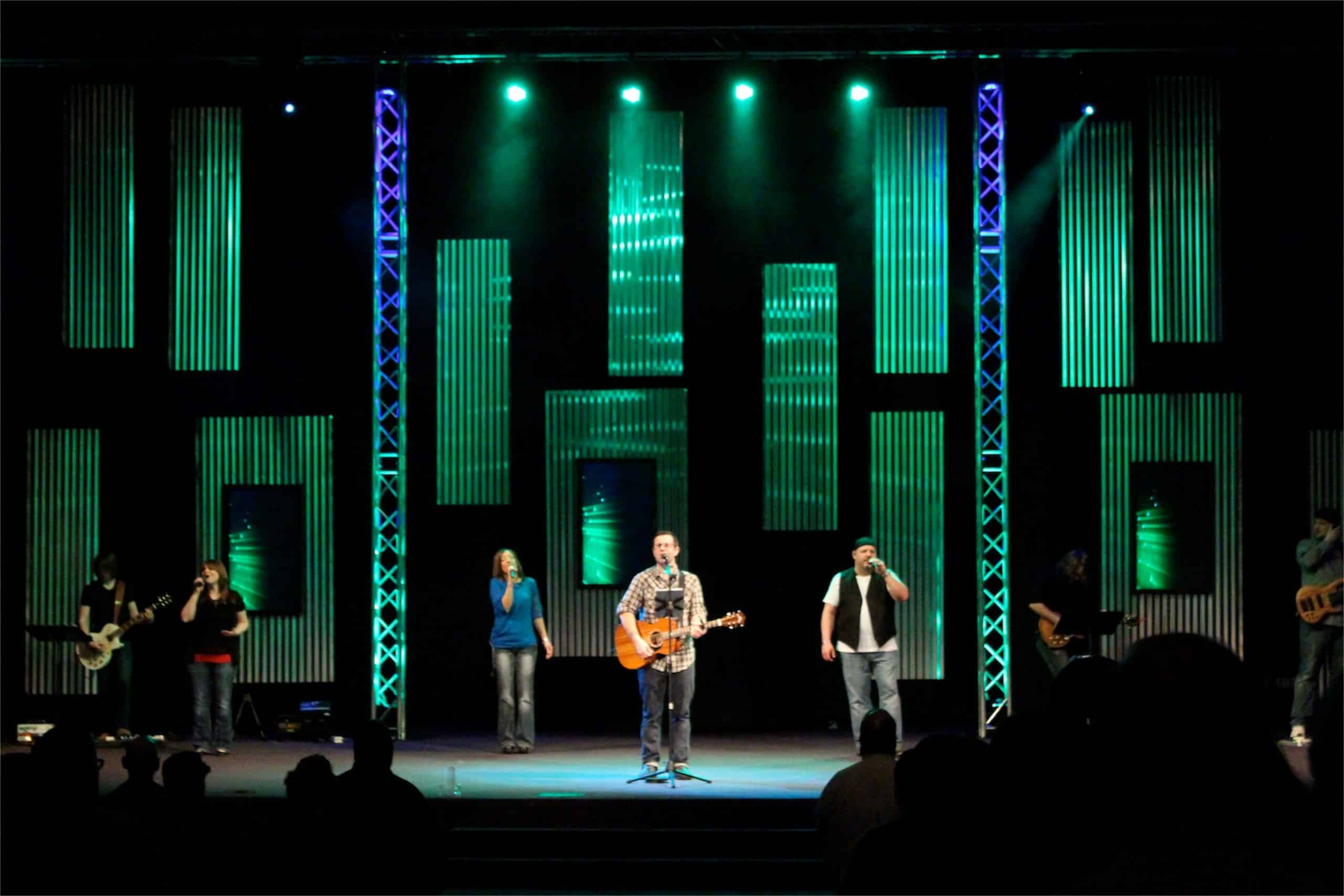

They loved how Patrick Fore incorporated vertical displays into his set design at The Woodlands United Methodist (The Hotel). So they wanted to use that same idea, but with the corrugated metal that they had seen a lot of people using on their stages. The weight load was distributed off a truss setup that was anchored to the floor and back wall. They used five displays mounted in the middle of two corrugated metal panels. The metal and hardware was purchased at a home store. They spent about $700 in metal, miscellaneous hardware, and clamps for rigging. They had enough displays, truss, and lighting in house already to pull this off.

For their video content, they used ProPresenter’s Master control module. Their main house screens were run on an iMac that controlled a mac mini running the exact same schedule as the Master Control. The video content was scaled to the vertical displays. They were able to create some great visual content spanning their entire stage. The down side of doing it this way was that they had to cut two different versions of most of their videos to make sure that the content on the vertical displays was framed right.

noid-IMG_2766

noid-IMG_2807

noid-IMG_3076

noid-IMG_9121

noid-IMG_9123

noid-IMG_9124

Angled Pieces Most Popular Stages – January 2020

5 responses to “Throwback: Framed Flat Panels”

  1. Joel Donis says:

    This stage design looks awesome. Would someone give us the details of how you were able to turn the image around on the TV Screens. I know ProPresenter has that as a feature. But perhaps there is another way.

    • Luke says:

      Windows and Mac both give you the option to rotate 90*, 180*, etc. in the resolution settings.

    • Jeremy Framstad says:

      Luke is right on. It is built into most graphic settings on you PC or Mac. Just rotate your screen and make sure your presentation program matches the resolution. I have done this in ProPrenter and EasyWorship.

  2. Robert James says:

    Nice Layout

  3. Patti Good says:

    How did you handle the reflective properties of metal? Was it even an issue?
