Throwback: Project: Boxes

Paul Snyder from Fairfax Community Church in Fairfax, VA brings us this awesome piece of 3d projection and masking. (Originally from July 2012)

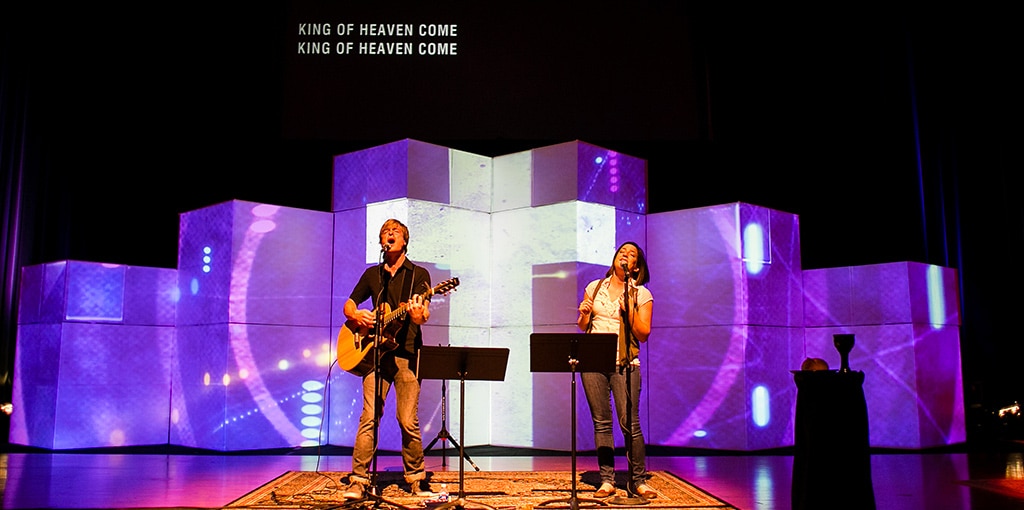

They wanted to create something unique on their stage for a new series called “Rescuing Ambition.” As they talked about the series, they liked the idea of portraying how we try to climb higher and higher towards success. They came up with the concept of cubes stacked on the stage with projection on it. So how to do it?

They researched various ways to build boxes on their own, using PVC and scrim or metal trusses. But they finally came to the solution of giant white boxes. They found 4x4ft shipping cartons and 2x2ft boxes. They had to paint the 4x4ft boxes with a glossy white paint that would be a good projection surface. Then they arranged them onstage and, with two projectors, masked the actual shape of the boxes. They took that into Photoshop to create their graphics. We used the same mask in their VJ equipment for motion.

At the end of the series, they repurposed the boxes for their next series, “Move.” They found a new arrangement for the boxes that looked fresh and created new masks.

[tentblogger-vimeo 43636153]

Cross Hatched Design Line of Rays

18 responses to “Throwback: Project: Boxes”

  1. Stewart Linthicum says:

    Love the design. Where are the projectors located?

  2. T. Swinford says:

    What kind of projectors do you use?

  3. /theRVK says:

    This is awesome and has so much potential. I love the 3d effect of the projectors. Can you give a floor plan of where things are located, mainly the projectors in relation to the boxes and whether they are on the floor, stands or mounted? Keep up the good work.

  4. John Falke says:

    We used two Eiki LC-XT3 projectors (standard resolution, 10K lumens each) connected via a Dual Head to Go run off of a MacBook Pro running Arkaos Grand VJ. We made the mask in Photoshop using the Pen tool, while sitting on a rolling chair on the stage, then we generated custom still graphics to make certain scenes. Most of the video backgrounds were full resolution videos that had a PNG mask on top (in Grand VJ) so only the surfaces had projection on them. This is the inexpensive way to do what appears like complex 3D projection mapping :-)

    In the Rescuing Ambition set we had the projectors very wide on the outside corners of the stage on about 6′ tall stacks (to reduce the up angle of the projection and minimize shadows). For the Move set, since it was a symmetrical wall) we had the projectors on the floor level on the edge of the stage between the instrumentalists on either side of the two center singers.

    We put green tape lines down on the stage so the musicians and singers knew where they could/couldn’t go while their was projection on the boxes so there were never any shadows on the projection surface. It was so convincing, that dozens of people for the first few weeks of Rescuing Ambition thought we were rear projecting because they didn’t notice the projectors stacked on the outside (and even if they saw them they didn’t think they could possibly covering the entire surface) and they could never see any shadows. I will upload a few stage diagrams somewhere and post a link here shortly.
