Simplicity in Lights

Craig Dereka from Mercy Road Church North East in Fishers, Indiana brings us this cool stage lighting setup.

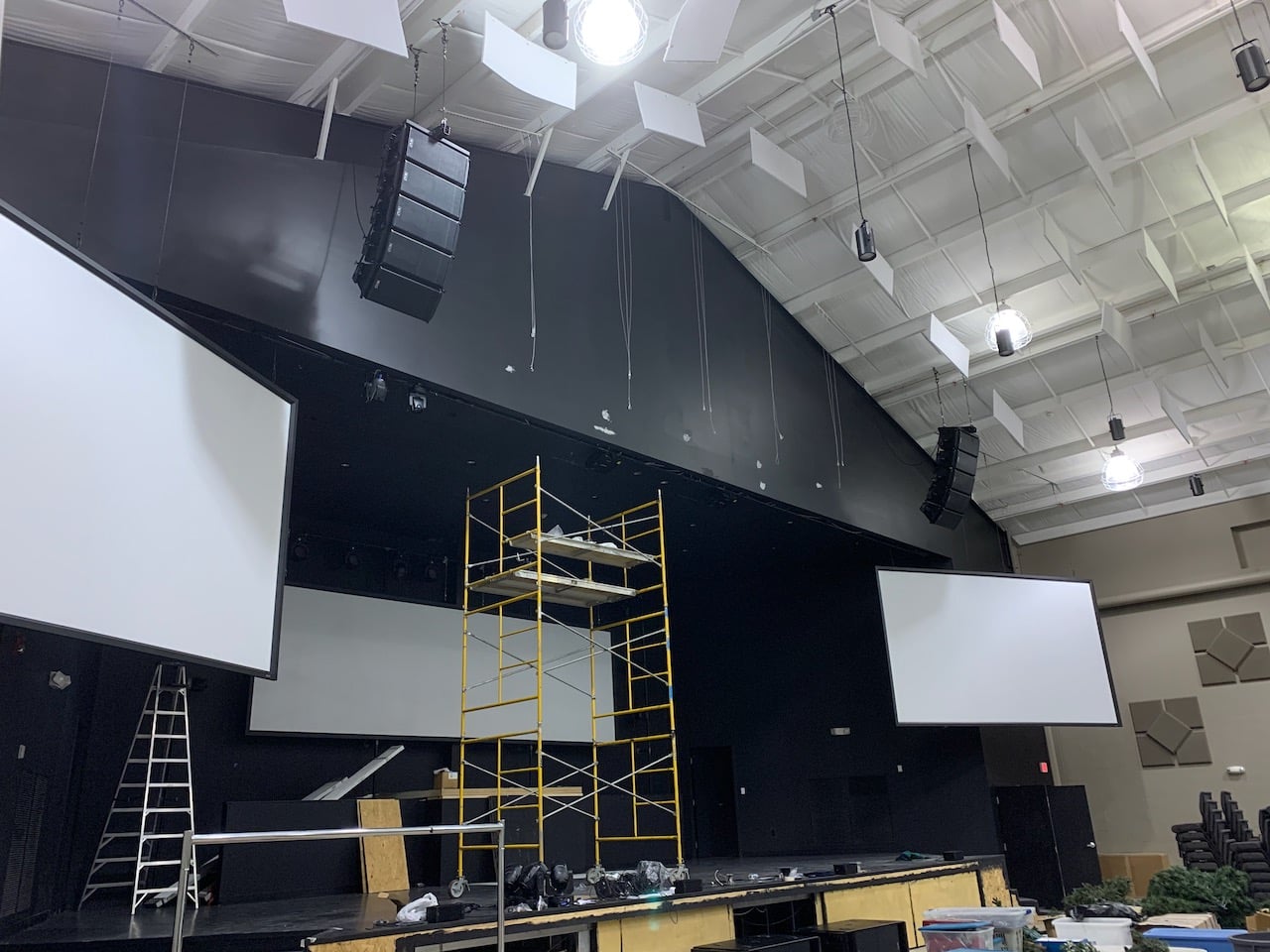

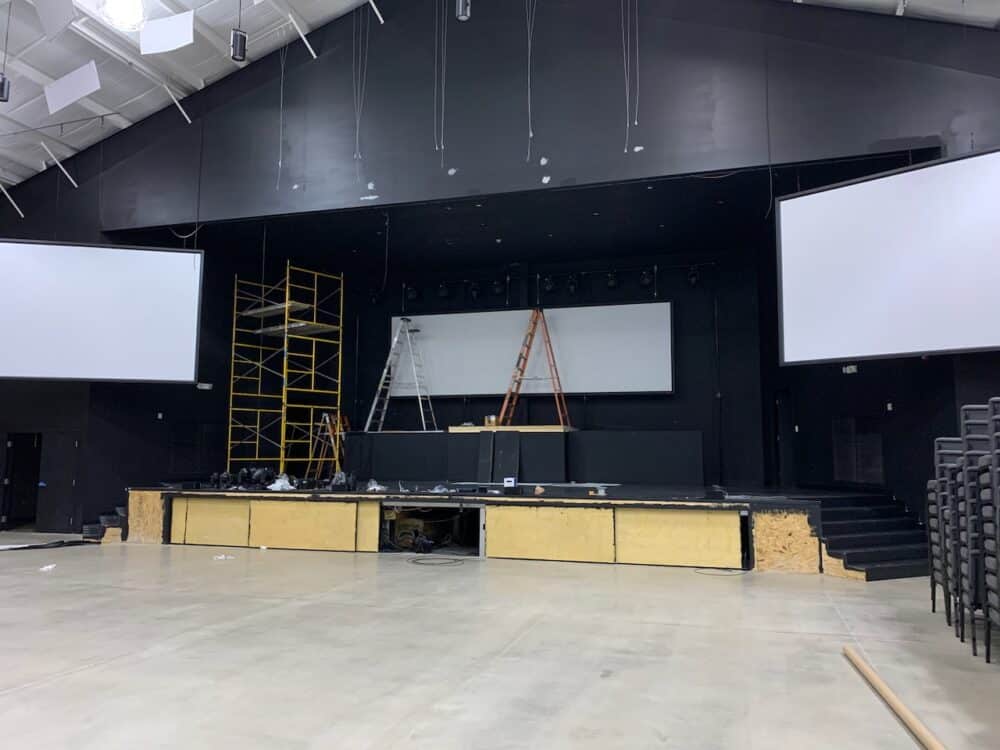

This stage design was driven by video and lighting. There were no set pieces and all of the walls were painted matte black. Black VCT tile was placed on stage instead of carpet. The VCT provides a modern and clean appearance versus carpet.

Lighting:

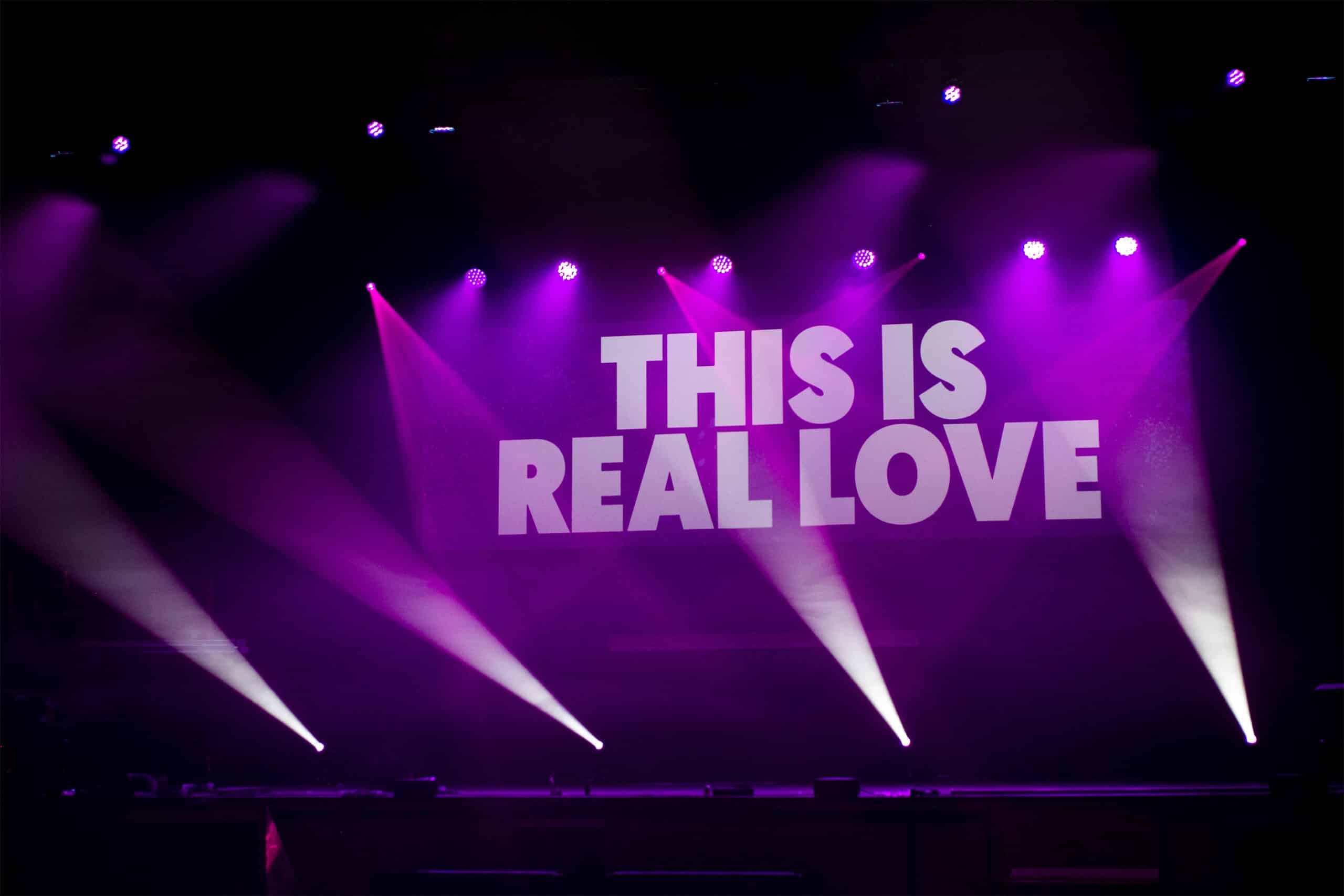

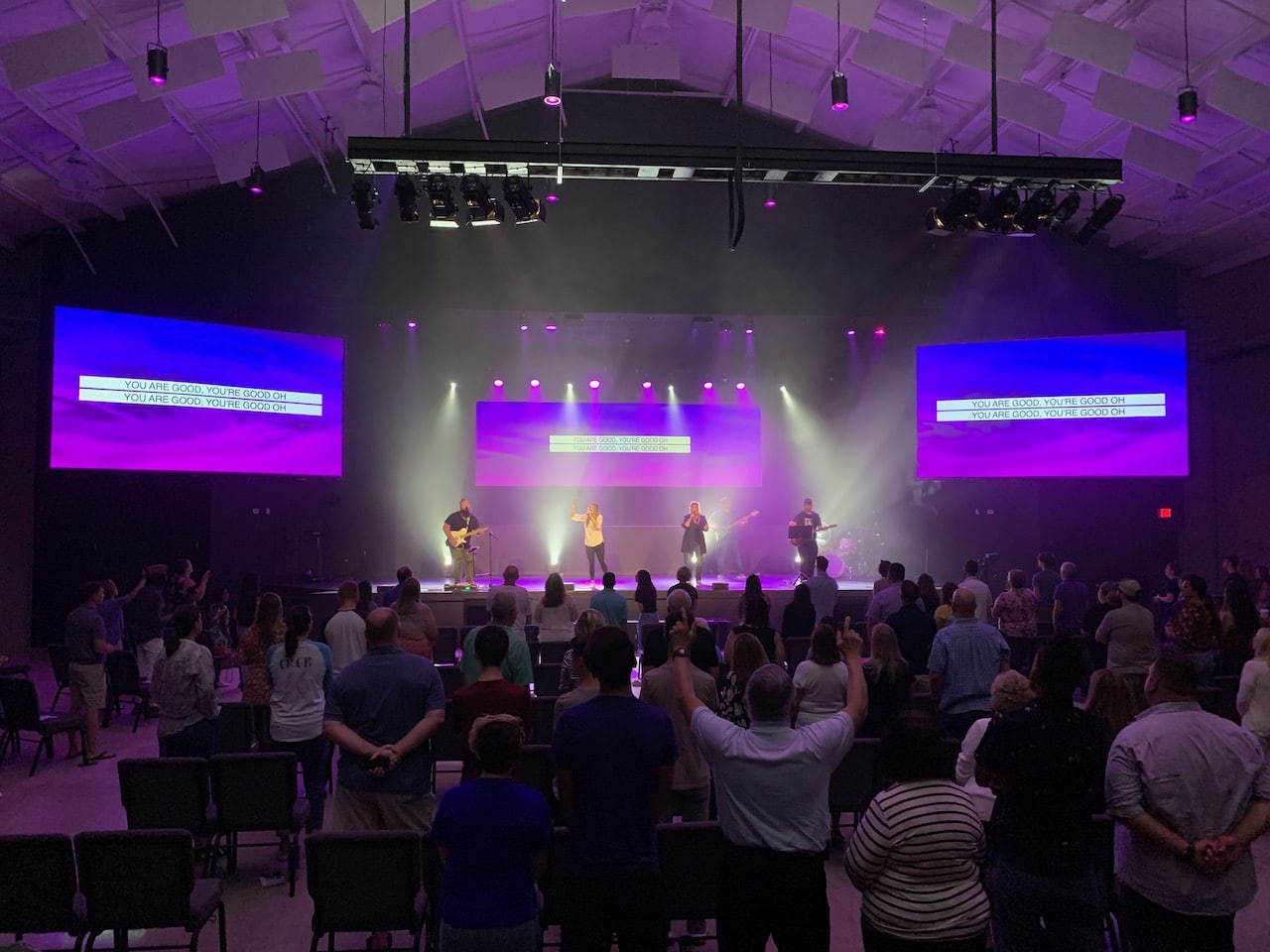

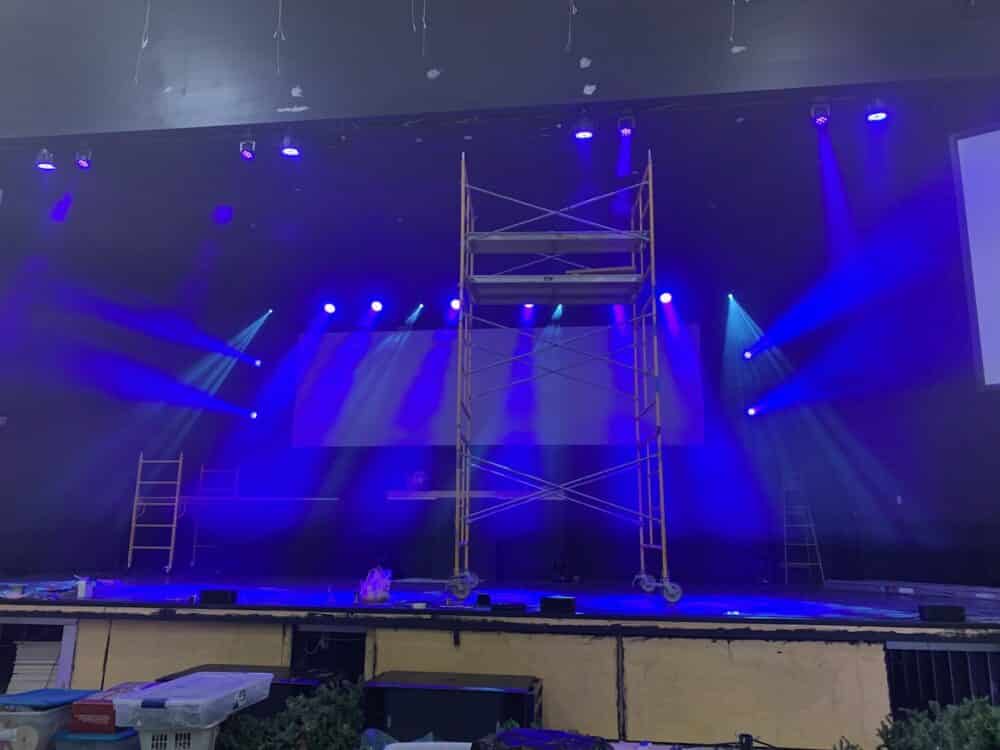

Pro Church Lights provided all of the lighting. They created a lighting design rendering for free before we purchased the lights. The lighting fixtures used allows for many different stage looks to be created very quickly as they are all color changing and mostly moving heads. There are 22 moving head fixtures in total.

Lighting Equipment List:

Control:
Chroma-Q Vista (1024 dongle + MV console)
Chauvet Data Stream 8

Moving Heads:
6 REV 19Z Wash style moving heads (above center screen)
4 REV 230Max Spot style moving heads (above center screen)
4 REV 230Max Spot style moving heads (placed on stage)
8 REV 7Z Wash style moving heads (at 4 at Proscenium and 4 on side of wide screen)

Static Fixtures:
6 REV ProWash Fresnel style fixtures for stage wash
4 REV ProParZ at Proscenium

Hazer:
Martin JemPro

House Lights:
ADJ Cannon Wash RGB

Center Wide Screen:
2 Panasonic 6,000 lumen laser projectors (PTVMZ60) were blended to create the center screen. It is driven by ProPresenter7. The center screen is 24′ x 7′.
