Slats and Tapes

Sean Bolinger from Christian Faith Center in Federal Way, WA brings us this beautiful way to soften LED tape.

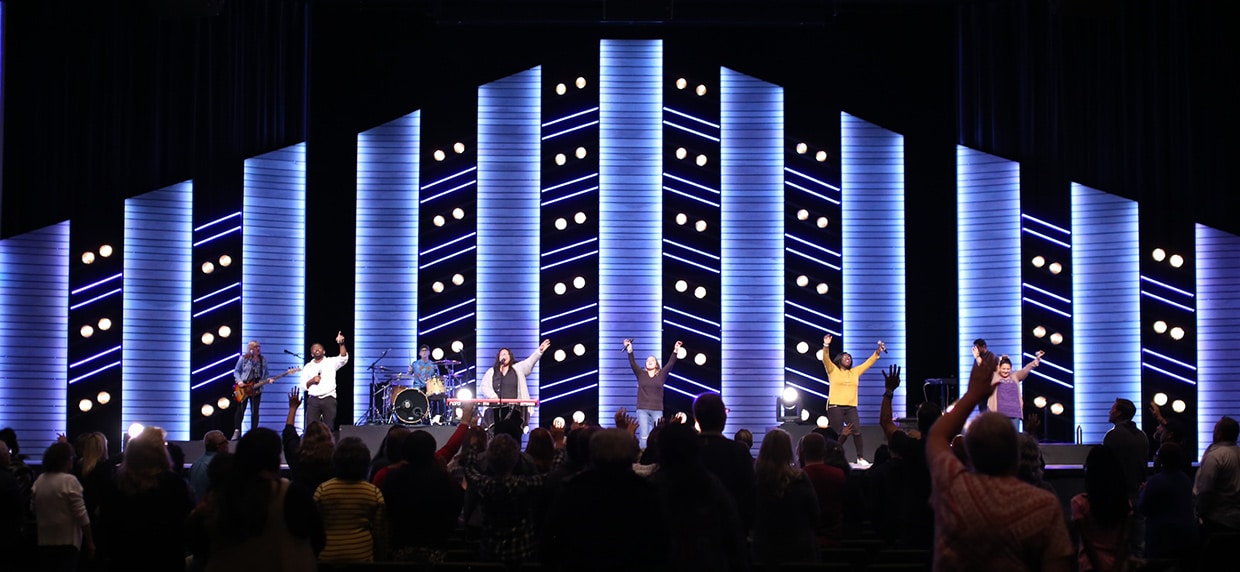

From Sean: For this set we wanted to achieve something that spanned across our entire stage and also gave the look of an A-Frame chapel. We started by creating the main pillar structures which are held up by trussing that we welded out of ½” square metal tubing. Then we attached ½” MDF we painted black to the pieces of trussing. Attached to the MDF is ¼” plywood that we stained a light gray and cut into slats that are 3” and 6” and we stapled them onto the MDF in a specific pattern. After we had them all assembled we stood them up on our stage, the center is 28’ tall and the shortest on the outsides are 13’ tall. After they were up we lined the edges with LED tape to shoot color across the wood. In between each of the pillars we attached strips of LED tape and aluminum work light cans in a pattern and wired them all up. We then created a smaller and slightly different look at one of our other campuses. All together between the two campuses we spent around $4000 to achieve the very large looks.

Shooting Stars Psalm Prints

12 responses to “Slats and Tapes”

  1. Chad says:

    Sean what did you attach the LED strips to on the side of the slats? U-channel or did you add some wood sides to attach them to?

  2. Chris Denning says:

    I’m with Chad above, can we get a pic up-close of how you attached the LED’s? Love the versatility and texture here.

  3. Eric Shelhart says:

    I have the exact same question. Getting ready to build something similar and trying to figure out the LED tape on the sides.

  4. Eric Prust says:

    do you guys have a CAD drawing or a Sketch up file that I could have to put in to show my worship team??

  5. Chris Denning says:

    Sean – There doesn’t seem to a response above to see :)

  6. Dalllas Stevens says:

    Don’t see a comment above Sean. This is a fantastic looking design. looking to see how you attached your LEDstrips as well as Chris and Erik.

  7. Stephanie says:

    This seems to be the question of the hour.

  8. Sean Bolinger says:

    Hey everyone, sorry this has taken so long, I wrote out an explanation and posted it with a link to some pictures but it looks like it never posted. So the way we attached the LED’s to the side was we built an ‘L’ and stapled it to the side of the wall and then attached the LED’s in the ‘L’ using the adhesive on the back of the LED’s and also putting in some cable staples to hold them in place if the adhesive wanted to stop holding them there. The ‘L’ stuck out from the wall 4 inches and then the front piece was 1.5 inches.

  9. Sean Bolinger says:

    So for some reason I can’t post a link in the comments to some pictures, so if you would like some pictures please email me at
