Throwback: Wiggly Pipe Set

Jeff Abbott from Ada Bible Church in Grand Rapids, MI brings this very cool use of bent PVC. (Originally posted October 2014)

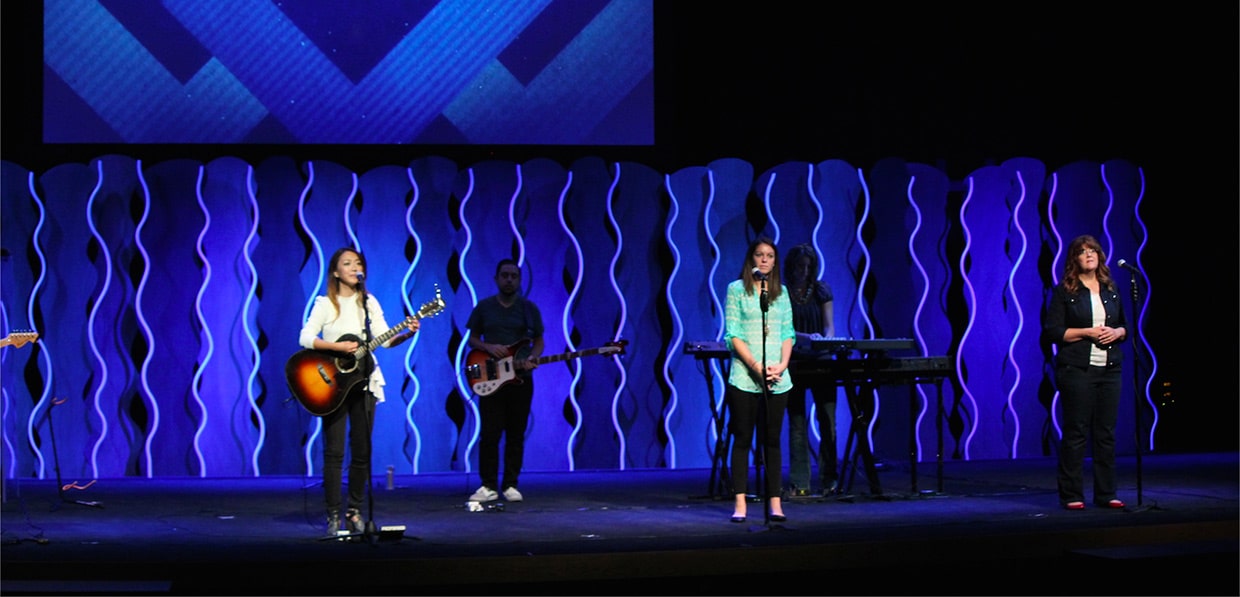

For their summer 2014 stage design, Jeff wanted to build something very organic feeling, with no straight lines in it.

The construction material was 6 different shapes cut from 1/4″ 4×8 Luan sheets stained 6 different colors. The white Squiggly lines they made from 1/2″ PVC pipe. The PVC pipe was cleaned with Acetone to remove the printing and labels, and heated up using PVC Bendit. Then put the PVC into one of 4 different forms to give it shape.

They made base plates with grooves they cut to align the bottom of the pieces in rows. Then they drilled holes in the bases to receive the PVC pipe. Three L-brackets were used to hold 2×2’s upright to support the stained pieces.

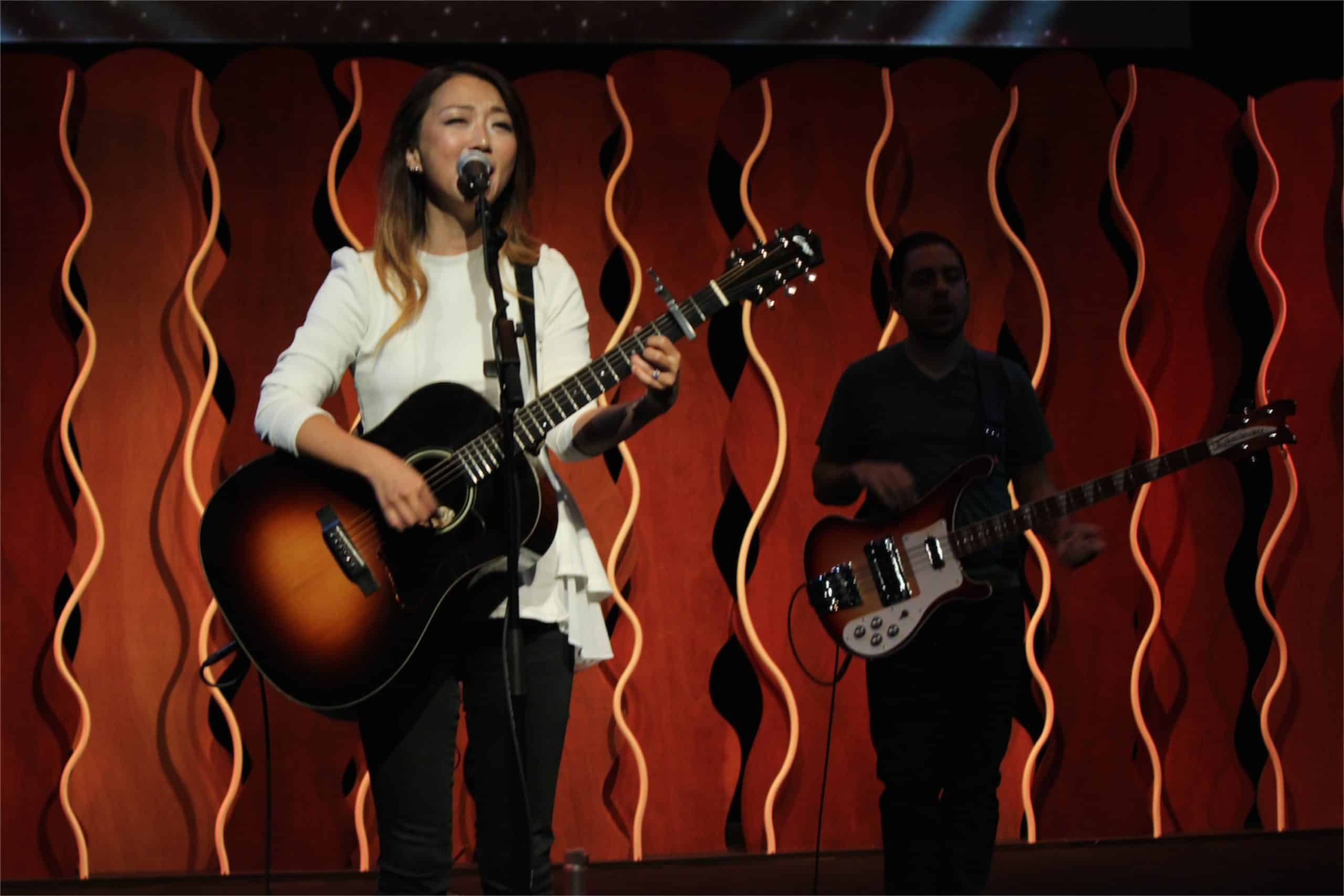

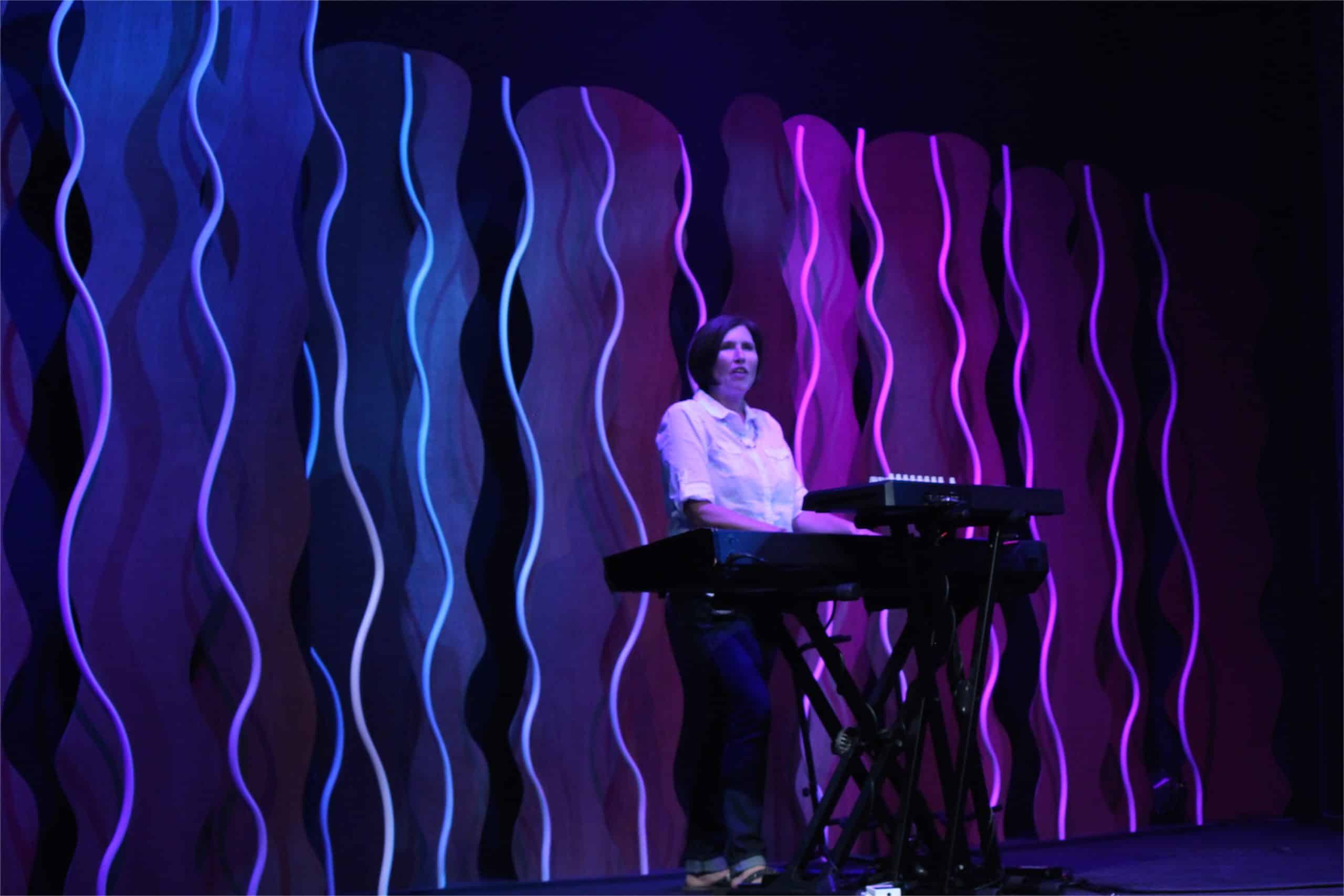

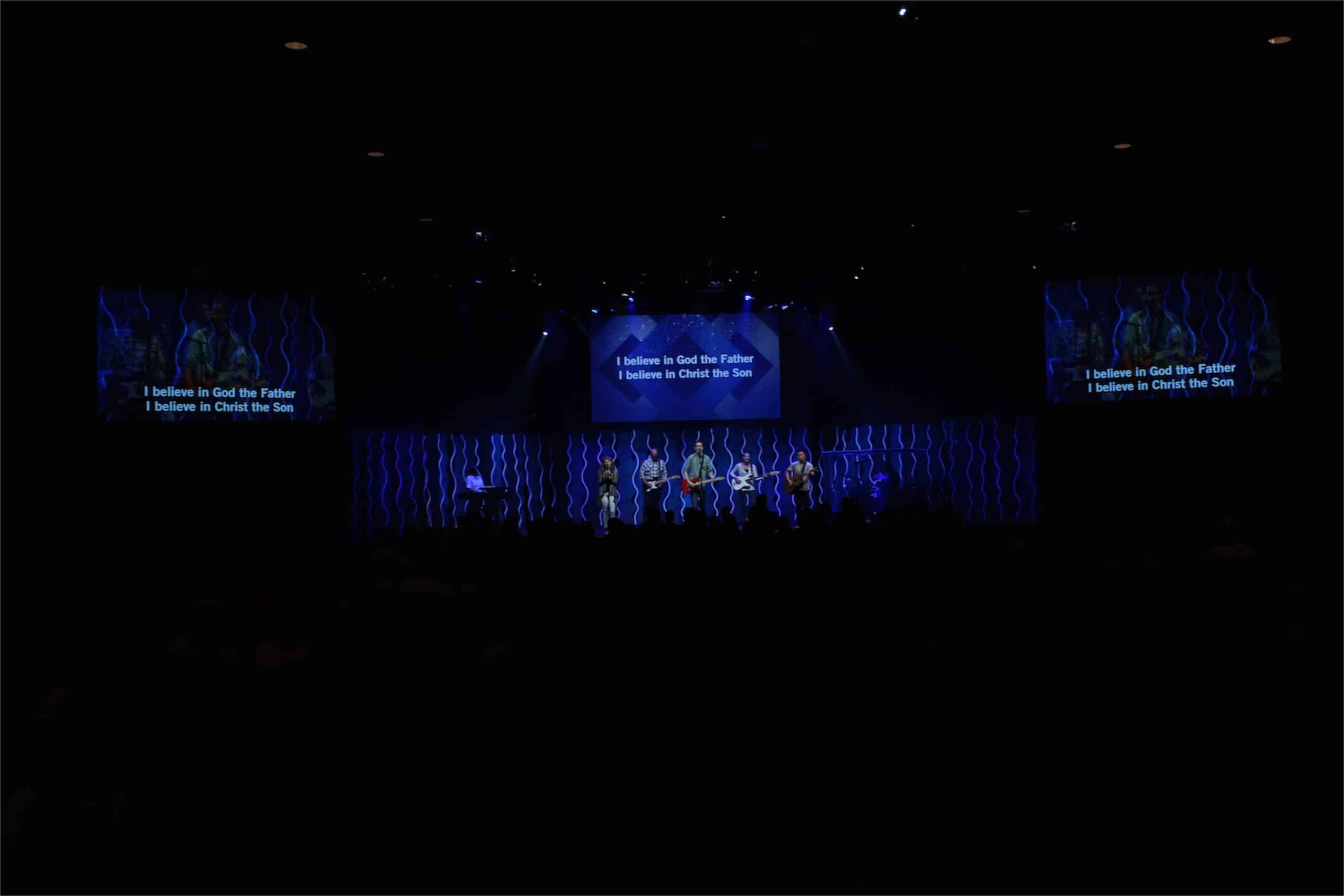

The PVC pipe glowed in contrast to the stained wood and gave them some great lighting looks.

If interested in a Sketchup file of this design, please email Jeff at: mhzministries@gmail.com.
