8 Bit Signals

Candace Shropshire from Fellowship Church at Granite Bay in Granite Bay, CA brings us these 8 bit soundwaves.

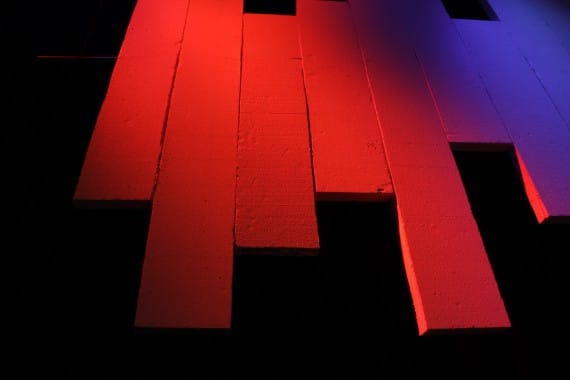

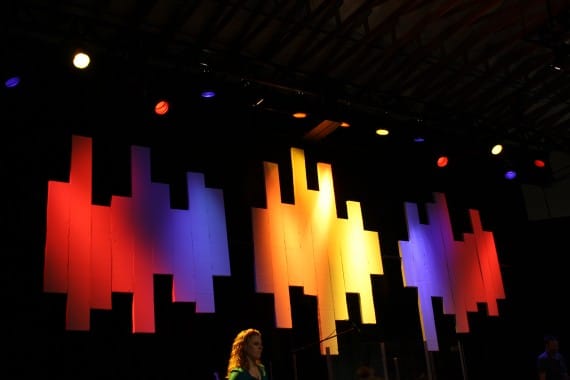

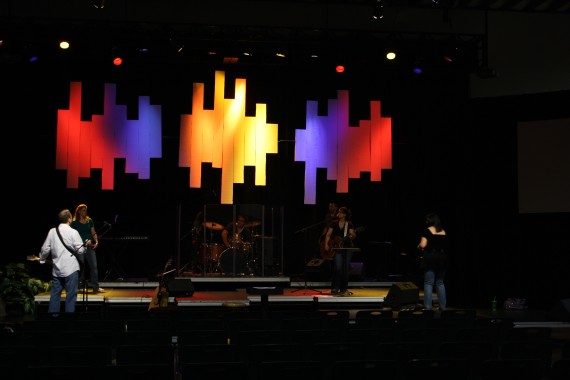

For their BEHIND THE MUSIC series, they wanted to have a “soundwave” or “equalizer” look. They took foam core and cut it into six inch strips and bore holes through the sides to put a metal pole through. They glued cardboard strips to the back to make sure they remained together. The poles were then hung from a truss with trick-line. They used red, orange, yellow, and purple gels in Par64 lights to create multicolors on the “wave”.

The only cost was for 6 large foam core sheets.
