Woven

Jeff Abbott from Ada Bible Church in Grand Rapids, MI brings us this the follow-up to The Weave.

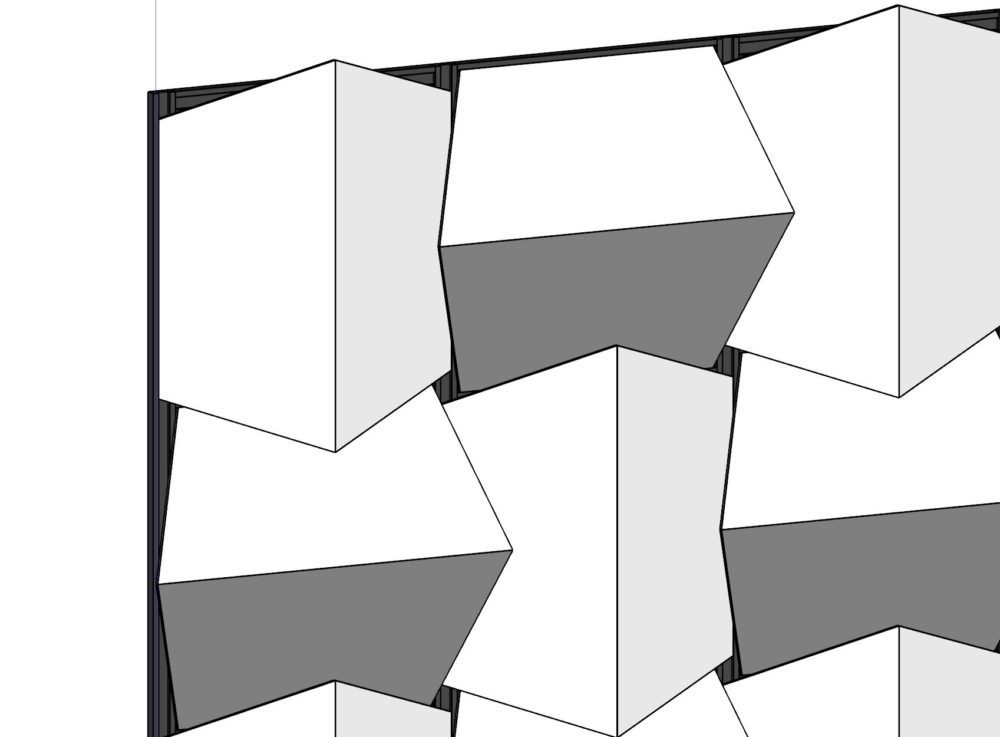

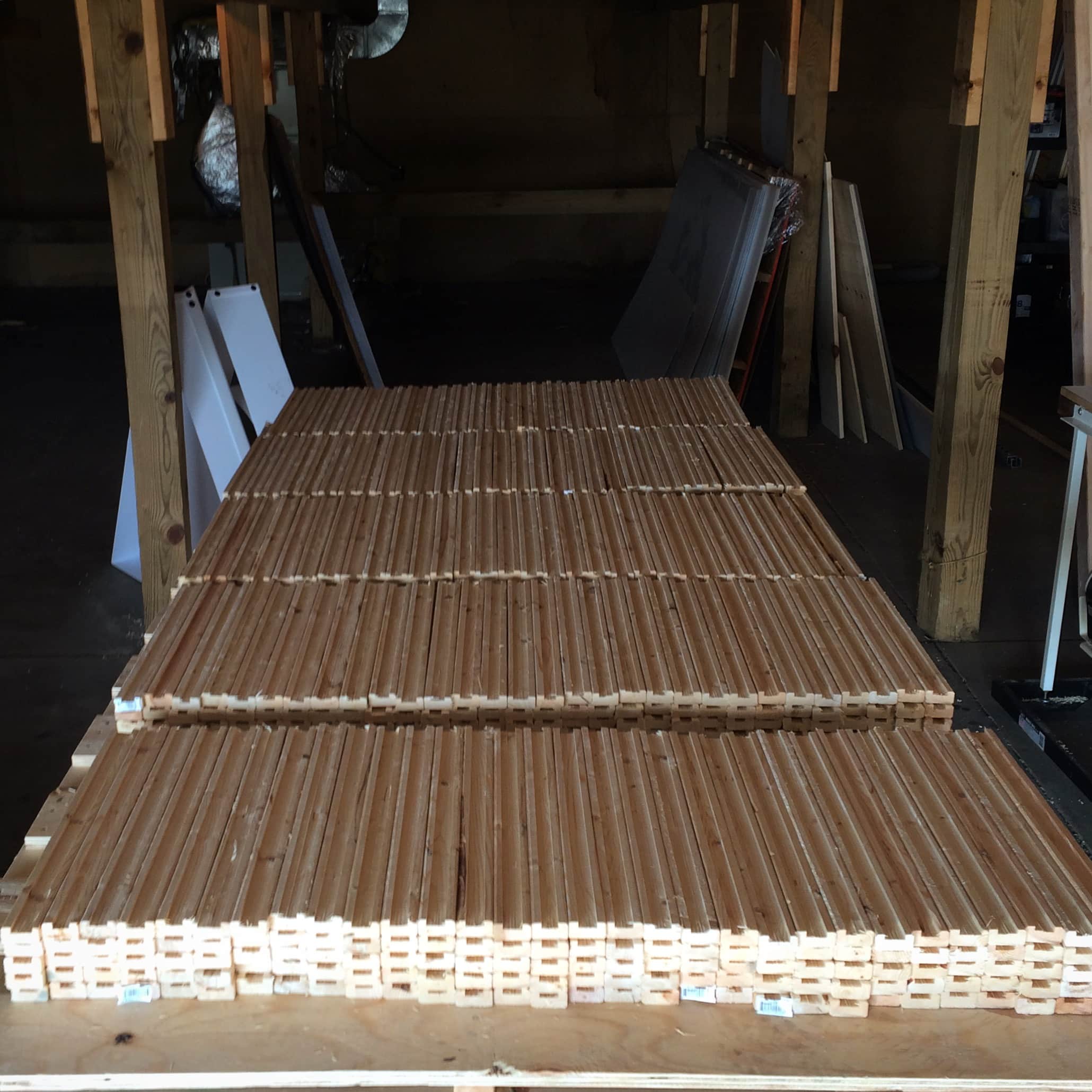

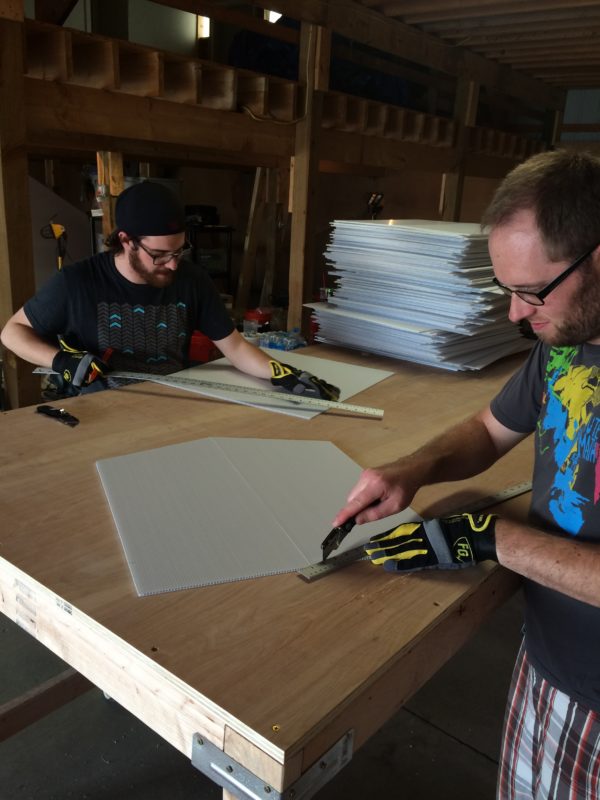

From Jeff: We created this simple but dynamic set with basic materials: Coroplast, 1×2 construction lumber, and paint. A grid was constructed from 1×2’s with a 1/2″ deep by 3/4″ wide Dado cut down the center of the board. Panels were cut from Coroplast and then cut halfway through on the center line to create a bend point (the Coro Claw is essential in making this cut).

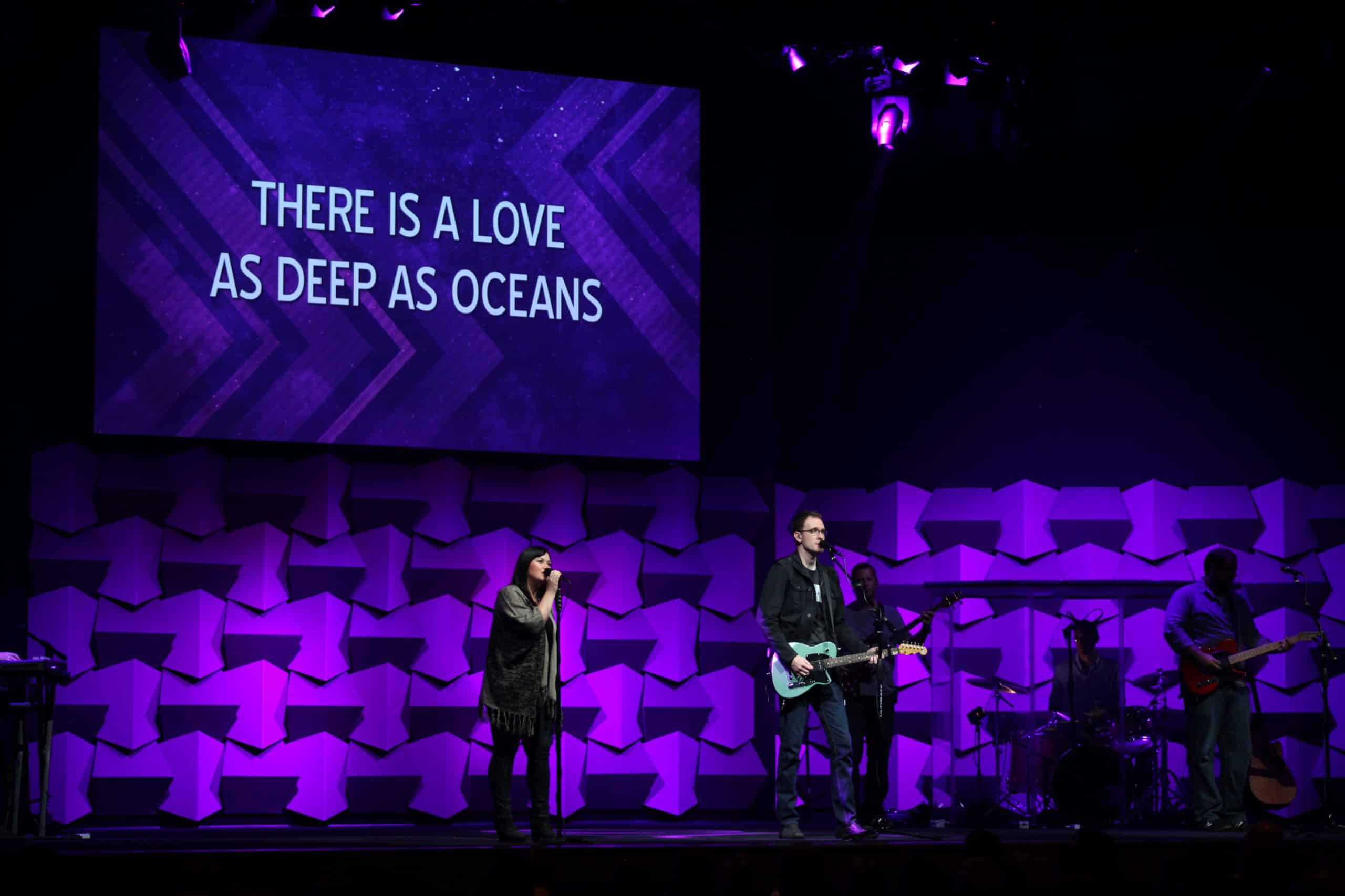

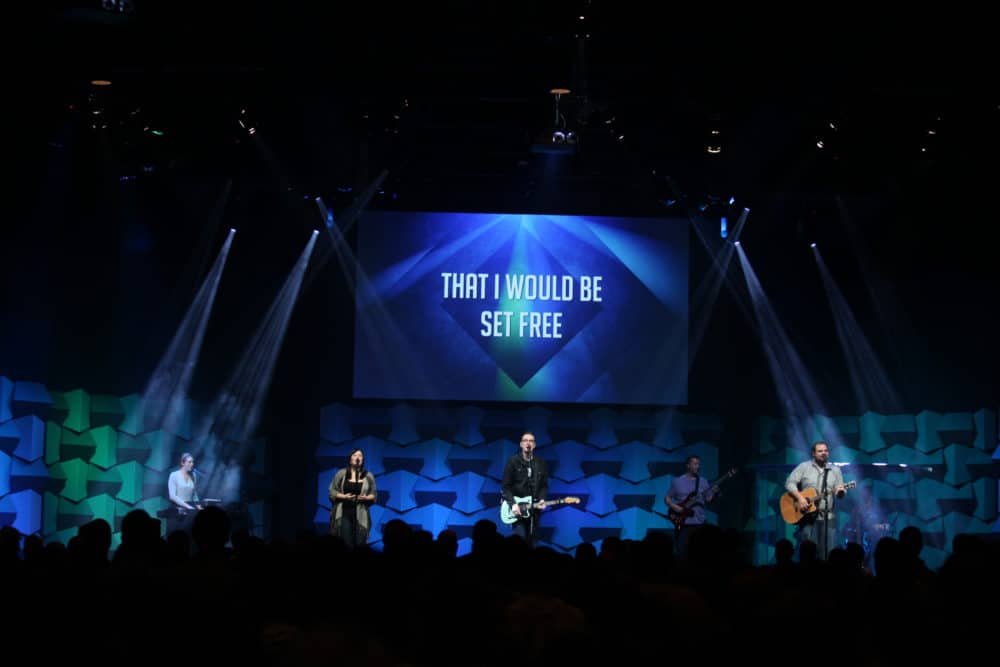

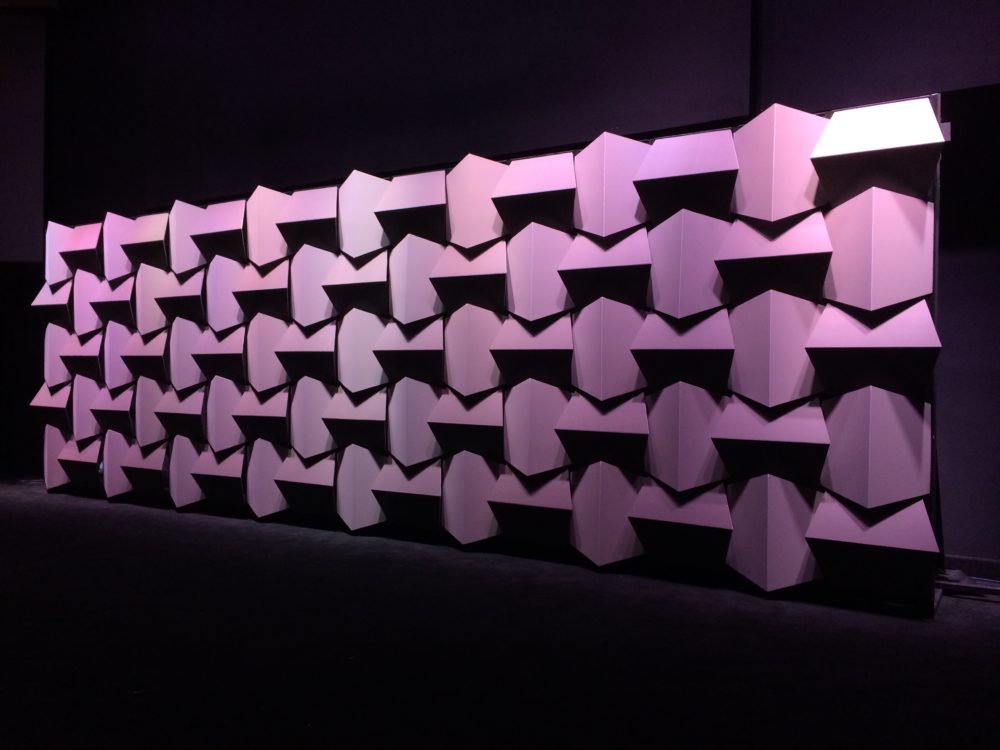

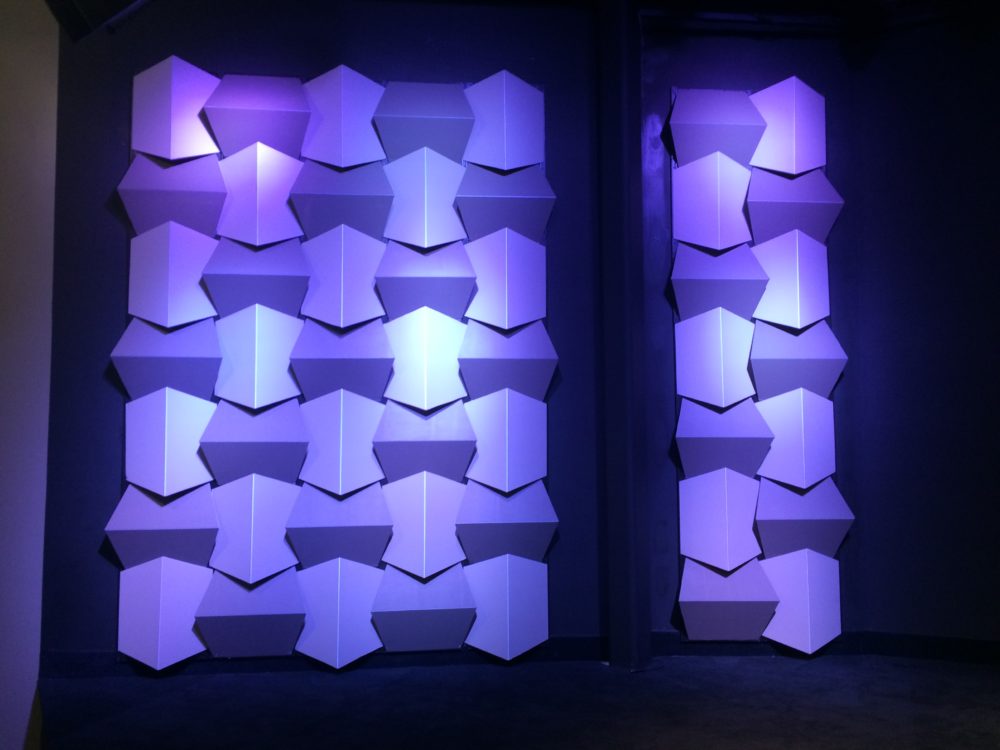

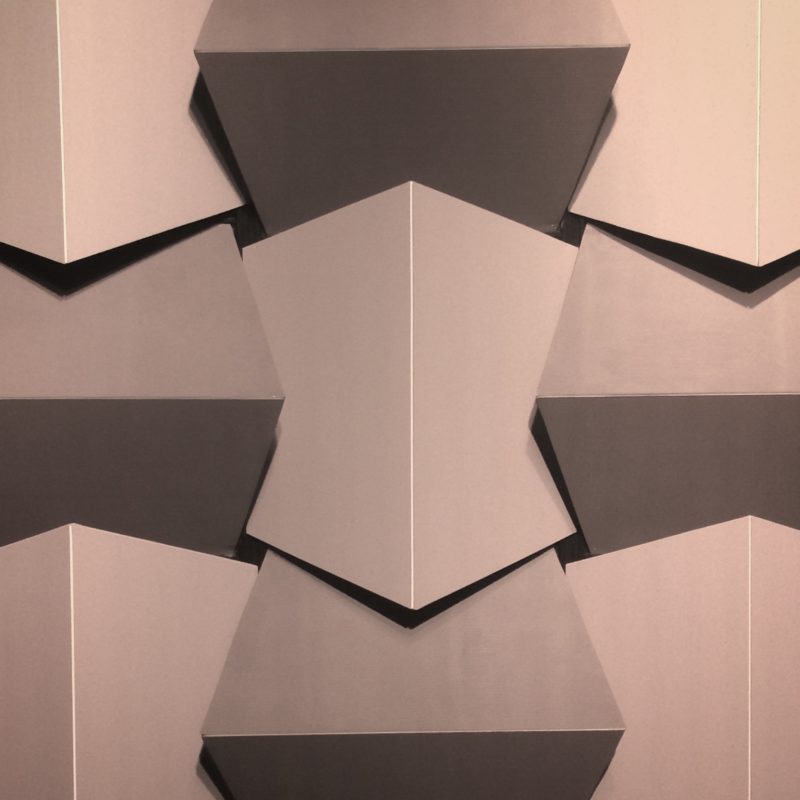

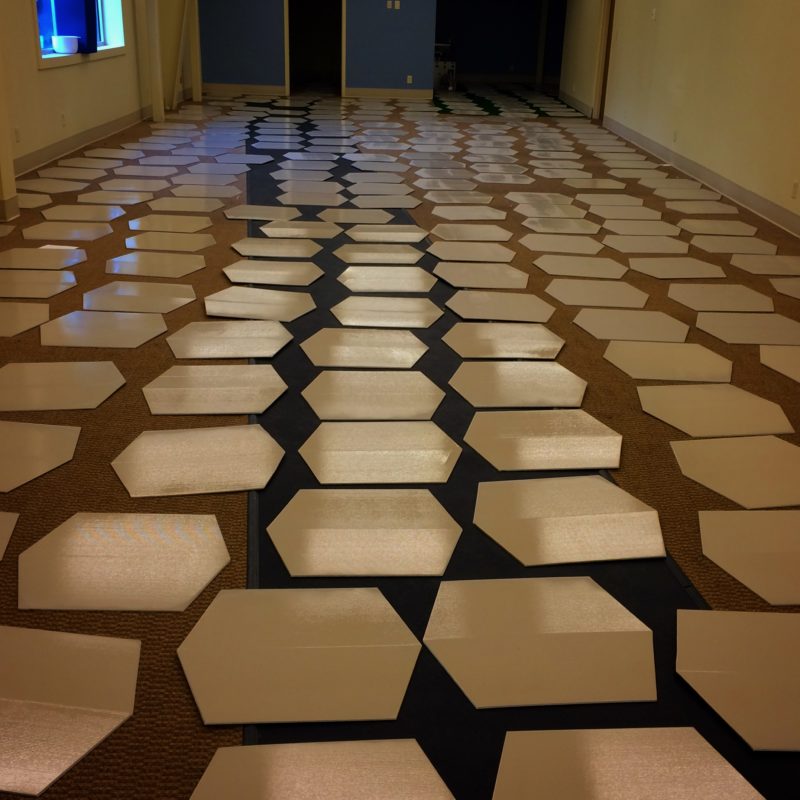

Once the panels were cut, the panels were painted 2 colors of grey, one darker than the other. When lit, this created a contrast on the panels to reinforce the woven feel of the set. The paint was sprayed on with a home paint sprayer. The panels were nailed to the grid in an alternating pattern. Light panels oriented vertically, the darker panels oriented horizontally.

Download the Sketchup file.
